How to choose batteries and chargers for Tractionhobby RAM 1500 1/8 RC Car?

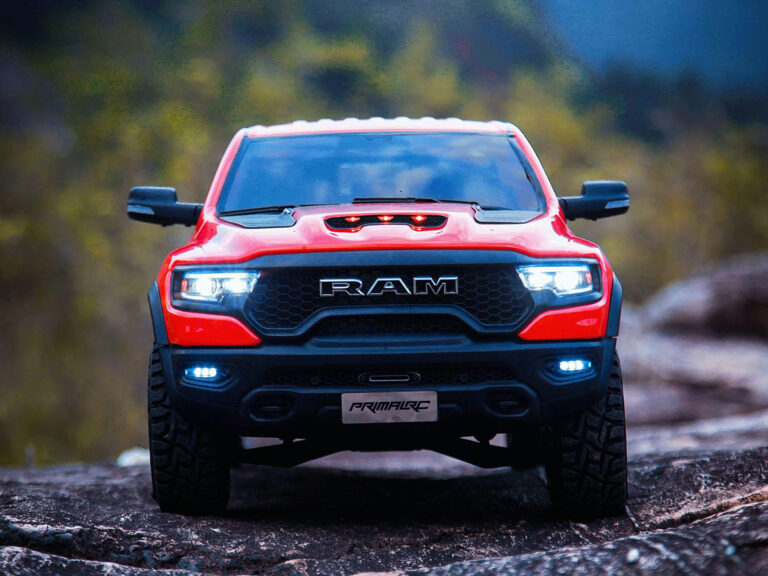

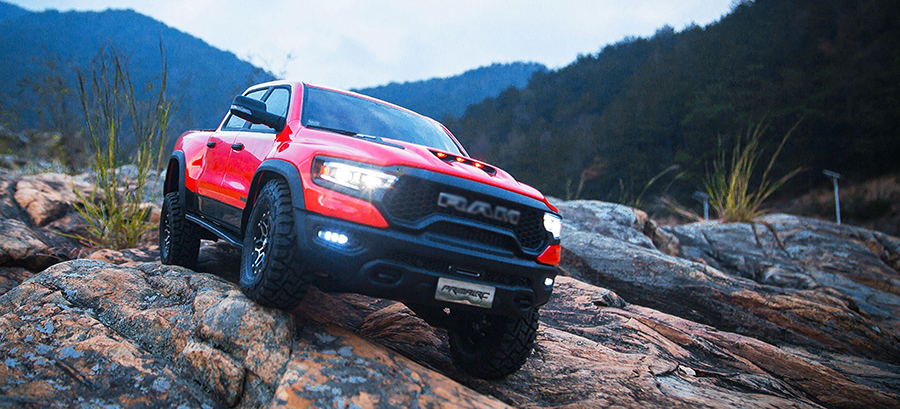

The Tractionhobby RAM 1500 is a 1/8 scale high-performance electric pickup truck — powerful and heavy. To unleash its full potential, choosing the right battery and charger is essential.
www.tractionhobbyrc.com
1. Battery Selection

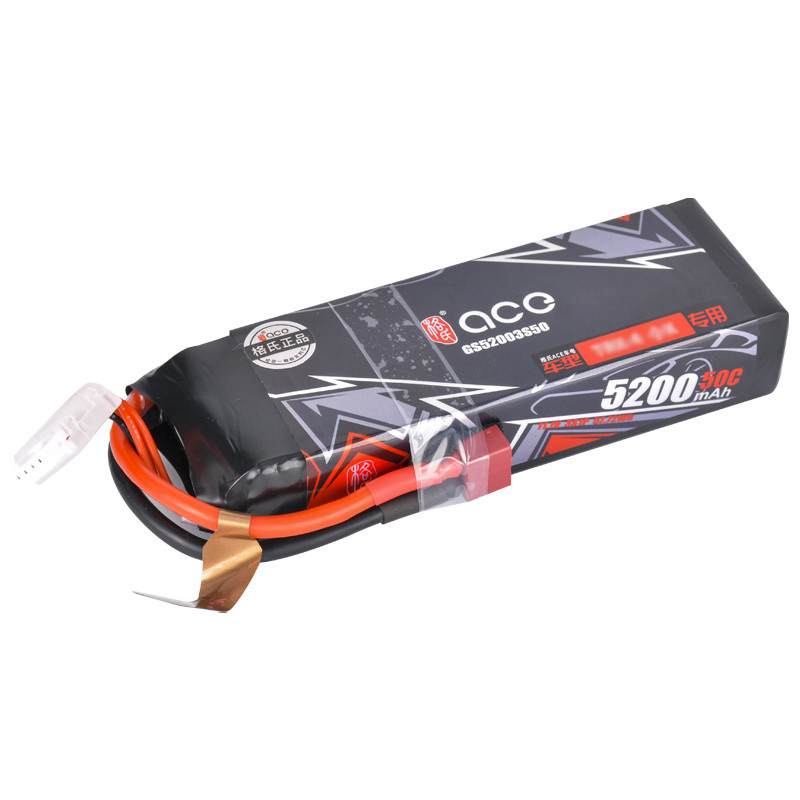

The RAM 1500 supports 2S–4S LiPo batteries, with 3S or 4S being the recommended choices.
- Voltage (S count): 4S provides stronger power and higher speed, while 3S offers a more balanced and stable performance.
- Capacity (mAh): 5000–8000 mAh is recommended for a good balance between runtime and weight.
- Discharge rate (C rating): At least 50C to ensure sufficient burst current output.
- Connector type: Make sure the connector matches your car (the stock version uses XT60).
- Recommended brands: Gens Ace and JMP are known for stability, safety, and durability.
2. Charger Selection
Your charger should support LiPo batteries and feature balance charging to prevent overcharging of individual cells.
- Power and current: Choose a model rated at 100W or higher, with a maximum output of around 10A, to charge large-capacity batteries faster.
- Supported battery types: Should handle at least 2S–4S.
- Safety features: Look for overheat, overvoltage, and reverse polarity protection.
Recommended models:

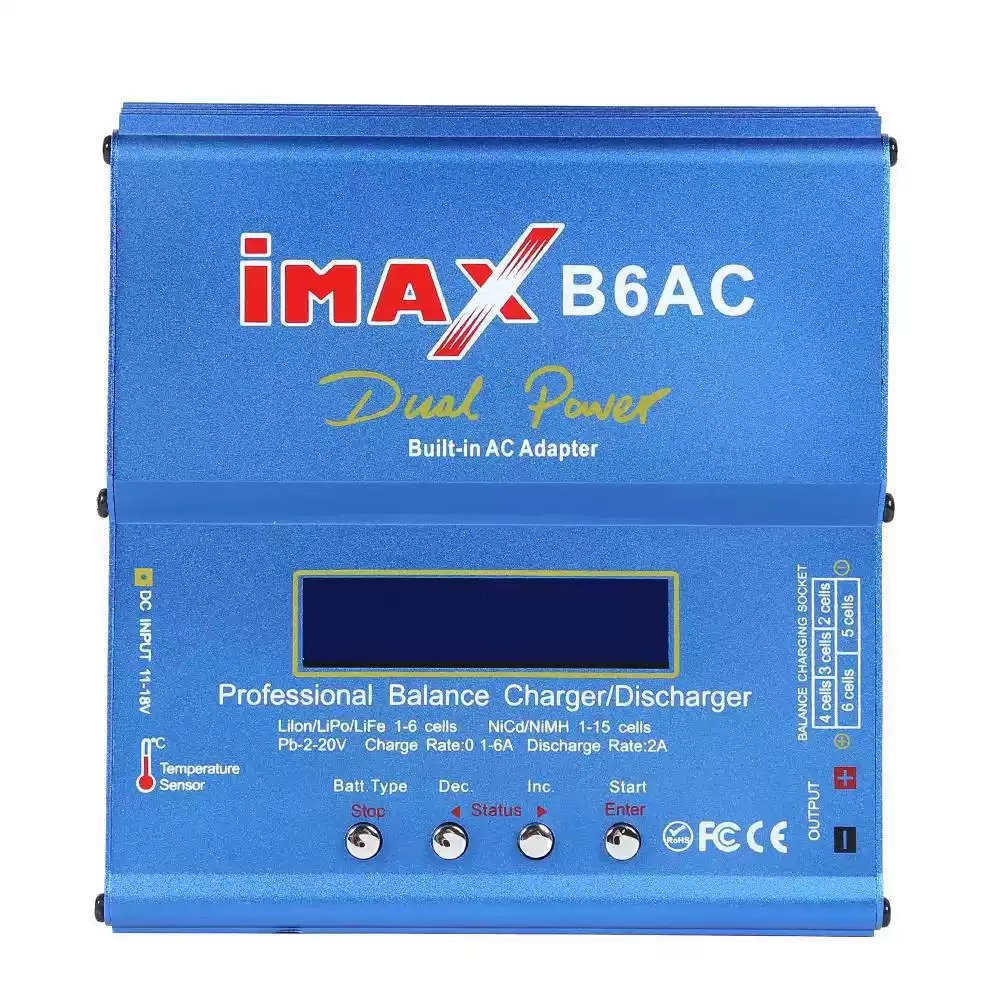

- iMax B6AC (80W): Compact and cost-effective.

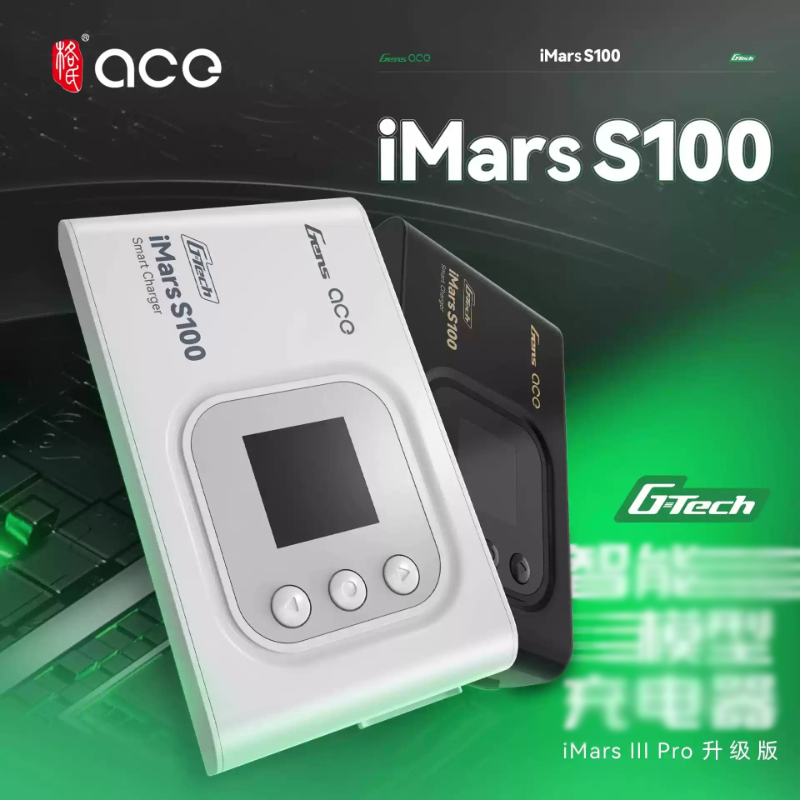

- Gens Ace iMars S100 (100W): Fast-charging and plug-and-play.
3. Safety & Maintenance
- Always charge inside a LiPo safety bag to prevent accidents.
- Keep your charging area well-ventilated and away from heat.
- Use the charger’s Storage Mode when storing batteries, keeping each cell at around 3.8 V.
- Avoid over-discharging (below 3.2 V per cell).
Summary

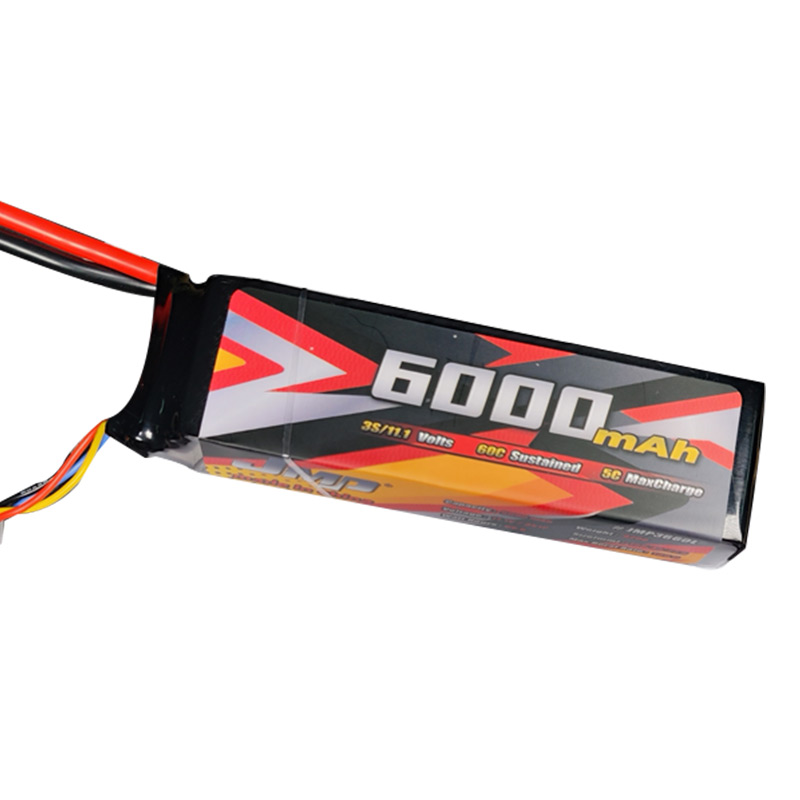

In short, a 3S 6000 mAh 60C battery paired with a 100W+ balance charger is an ideal setup for the RAM 1500 (except for extreme high-power use). The battery defines performance, and the charger ensures safety — together they bring out the perfect balance of power and reliability for your big RC truck.
